Product Series

Intelligent Trunk Inductive Opening System When you find yourself holding things with both hands and inconvenient to open the trunk just use your foot to sweep the bottom of the bumper and the trunk will open easily.
Product Features Release your hands and open the trunk door automatically with a kicking movement in a high sensitivity.
Easy to operate. Hidden and nondestructive installation. Convenient wiring.
Safe, reliable and has error proofing protection function.
Low power consumption, static current and nondestructive vehicle battery
Automatic light and buzzer warning.

Usage Mode

Product Features Functional MovementUse your foot approaches naturally and keeps a distance of 5cm. Make the kicking movement and return your foot to the original position. Movement RequirementsThe above-mentioned movement must be done in between of 200ms to 1s.
In the movement of kicking, both blue and red areas in the graph must be reached.
Product Parameters Product parameters / Tachograph
Induction Key Technical Parameters
Item Parameters
Working Voltage Standby Current
Standby Current ≦?3uA
Working Current (Wireless Transmitting Instant) 8±2mA
Induction distance ≦1M
Working Temperature Range -20～75℃
Host Technical Parameters
Item Parameters
Working Voltage DC 12V(10.8~16V)
Standby Current 0.2mA
Working Current 55±10mA
Working Temperature Range -30~+70
Waterproof level sensor IP67

Open the Era of Intelligent VehiclesIntegrate Technology into Lives of Intelligent Vehicles Become a leading and influential international company in the field of automotive components.

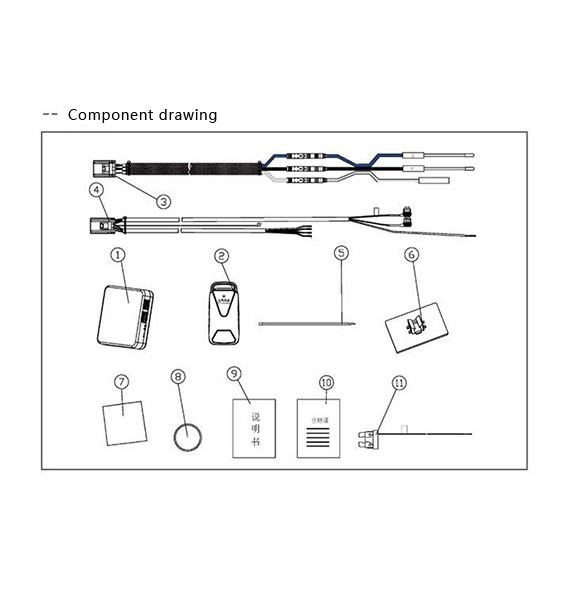

Detailed List
1.Host Box1individual
2.Induction Key1individual
3.Induction Antenna Group1strip
4.Power Line Group1strip
5.Bandage10strip
6.Fixed Clamp8individual
7.3M Host Backside Adhesive1individual
8.Battery1individual
9.Instructions1individual
10.Certificate1individual
11.Safety Insert (with tail)2strip
